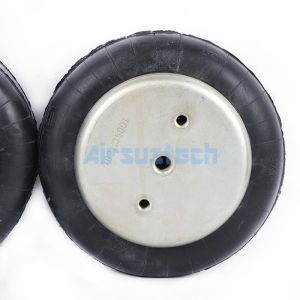

    1 PC for Goodyear 1B8-580 Single Convoluted Rubber Air Spring Static H. 157 MM

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B8×6
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    1 PC for Goodyear 1B8-580 Single Convoluted Rubber Air Spring Static H. 157 MM

    1 PC for Goodyear 1B8-580 Single Convoluted Rubber Air Spring Static H. 157 MM


    Quick Deatils


    Model NumberAIRSUSTECH 1B8×6
    Bellow TypeSingle Convolution
    MaterialRubber and Steel
    StandardOEM Standard
    Temperature Range-40℃+70℃
    Refer NO.Firestone W01-358-7605
    Other NO.Goodyear 1B8-580
    Quality100% Tested

    1B8×6 Air Spring Features


    • Cover Plate

    Top Cover Plate Diameter: 135 mm
    Screw Center Distance of Top Cover Plate: 70 mm
    Bottom Cover Plate Diameter: 135 mm
    Screw Center Distance of Bottom Cover Plate: 70 mm


    • Nut/Blind Nuts

    Top Cover Plate Screw(Nut) Tooth: 2×3/8-16UNC
    Bottom Cover Plate Screw(Nut) Tooth: 2×3/8-16UNC


    • Gas Hole/Air Inlet/Air Fitting

    Pneumatic Connection: 1/4-18 NPT


    • Rubber Bellow

    Rubber Bellow Max. Diameter: 240 mm
    Natural Height: 157 mm


    Other OEM Numbers


    Goodyear Air Bellow: 1B8-580

    Goodyear Air Bellow: 1B8580

    Goodyear Air Bellow: 1B8 580

    Goodyear Air Bellow: 1B 8-580

    Goodyear Air Bellow: 1B 8580

    Goodyear Air Bellow: 1B 8 580

    Firestone Air Bag: W01-358-7605

    Firestone Air Bag: W013587605

    Firestone Air Bag: W01 358 7605

    Firestone Air Bag: WO1-358-7605

    Firestone Air Bag: WO13587605

    Firestone Air Bag: WO1 358 7605

    Firestone Pneumatic Air Spring: W01-358-7598

    Firestone Pneumatic Air Spring: W013587598

    Firestone Pneumatic Air Spring: W01 358 7598

    Firestone Pneumatic Air Spring: WO1-358-7598

    Firestone Pneumatic Air Spring: WO13587598

    Firestone Pneumatic Air Spring: WO1 358 7598


    Why Air Springs Outperform Steel Leaf Springs in Shock Absorption​​?


    Air springs deliver superior shock absorption compared to steel leaf springs due to key design and functional advantages across four critical dimensions:


    ​​1. Enhanced Ride Comfort​​


    Leaf springs rely on rigid steel plates, resulting in:


    • ​​High stiffness​​: Poor vibration damping, leading to a harsh ride.
    • ​​Heavy weight & large size​​: Limits suspension travel and contributes to longitudinal bulk, restricting design flexibility for modern vehicles.
    • ​​Wear-prone pins​​: Constant friction between leaf spring components accelerates wear and maintenance needs.
    • In contrast, air springs use ​​compressed air​​ as a dynamic cushion:
    • Adjustable pressure adapts to load changes, maintaining consistent ride height.
    • Flexible rubber/nylon construction absorbs road shocks and vibrations, minimizing discomfort.


    ​​2. Superior Safety Performance​​


    For multi-axle vehicles, leaf springs often cause ​​uneven load distribution​​, overburdening single axles and risking instability. Air springs:


    • Automatically balance load across axles, preventing overloading.
    • Ensure even force distribution between wheels on a single axle, maximizing tire-road contact.
    • This enhances:
    • ​​Braking efficiency​​: Consistent tire contact improves stopping power.
    • ​​Stability​​: Reduced rollover risk and better handling of uneven terrain.

    The Drawing and Real Photos of 1B8×6
