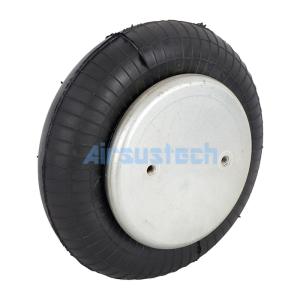

Weforma Air Spring Systems WBE 300-E1 G1/4 Single Convoluted Pneumatic Air Actuator

The Specifications and Technical Parameters of AIRSUSTECH 1B1209

[1] Minimum height: 50 mm

[2] Max. height: 115 mm

[3] Full stroke: 65 mm

[5] Air connection: G1/4

[6] Threaded hole: 2×M8×1.25

[7] Cover plate width: 135 mm

[8] Center distance: 70 mm

[9] Material: rubber and steel plate

Vibration isolation - dynamic characteristics values

Pneumatic application - static characteristic values

Other OEM Numbers

Firestone Style: W01-M58-6165

Firestone Style: W01M586165

Firestone Style: W01 M58 6165
Contitech Air Actuator: FS 120-9

Contitech Air Actuator: FS 1209

Contitech Air Actuator: FS 120 9
Dunlop Air Spring: 8''x1 S08101

Dunlop Air Spring: 8'x1 S08101

Dunlop Air Spring: 8x1 S08101
Bosch Air Bag: 822419003
Festo Air Spring Assembly: EB-215-80

Festo Air Spring Assembly: EB21580

Festo Air Spring Assembly: EB 215 80
Norgren Air Suspension: PM/31081(8x1)

Norgren Air Suspension: PM31081(8x1)

Norgren Air Suspension: PM 31081(8x1)
Weforma Air Spring System: WBE 300-E1
Airtech Air Bag: 140293
Airtech Part Number: 111003/1B-190FB
Megatech Refer Number: 1S120-9 3/4 M8

Key Advantages of AIRSUSTECH Convoluted Air Springs

1. Air spring shock absorbers deliver exceptional advantages compared to traditional spring systems, making them the preferred choice for demanding applications. These advanced components provide ​​excellent shock absorption​​ through their adaptive air cushion design, which dynamically responds to load variations and road conditions. Unlike rigid metal springs, they maintain ​​stable shock absorption​​ characteristics across diverse operating environments.
2. The ​​precise height control​​ capability allows operators to adjust vehicle or equipment leveling with air pressure modifications, ensuring optimal performance under varying loads. Available in a ​​wide range of sizes​​ and configurations, air springs can be tailored to specific requirements from light industrial applications to heavy-duty machinery.
3. By effectively isolating vibrations and reducing structural stress, air springs significantly ​​extend equipment life​​ and lower maintenance costs. Their inherent damping properties ​​effectively reduce noise​​ transmission by up to 15dB compared to mechanical springs, creating quieter operational environments.
4. These comprehensive benefits make air spring shock absorbers ​​widely used​​ across transportation, industrial machinery, precision equipment, and vibration-sensitive applications where performance and reliability are critical.

The Real Photos

Factory Workshop
