    Airsustech Air Spring Assembly Cross Firestone W01-358-7550 Rubber Double Convoluted

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B7550
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Airsustech Air Spring Assembly Cross Firestone W01-358-7550 Rubber Double Convoluted

    AIRSUSTECH Air Spring Assembly Cross Firestone W01-358-7550 Rubber Double Convoluted


    OEM NO.


    Firestone:W01-358-7550

    Firestone:W01 358 7550

    Firestone:W013587550

    Firestone:WO1-358-7550

    Firestone:WO1 358 7550

    Firestone:WO13587550

    Contitech:FD331-26 541

    Contitech:FD331 26 541

    Goodyear:2B12-346

    Goodyear:2B12 346

    Goodyear:2B12-440

    Goodyear:2B12 440

    Goodyear:578923315

    Triangle:6375

    Triangle:4480

    Watson&Chalin : AS-0087

    Histeer :10315


    2B7550 specifications and Tecnical Data


    1. Nut/blind nut Top plate screw (nut) teeth: 1/2-13UNC; 3/4-16UNC

    Top plate screw center distance : 157mm

    2. Bottom cover plate screw (nut) teeth: 2 x 3/8-16UNC

    Bottom plate screw center distance : 157 mm
    2. Air hole/air inlet/air fitting air hole/air inlet: 1/4-18NPT

    The Screw is combined with the Air Inlet
    3. Top plate diameter (width): 224.5mm, bottom cover diameter (width): 224.5 mm

    4. Rubber bellows Max. diameter: 343mm

    5. Min height: 104mm

    Max. height: 363mm

    6. Bumper block/bumper block with bumper
    7. Belt loop/belt loop/girdle hoop: with one piece of belt loop/girdle hoop


    Other Airride Air Springs we could provide


    Single Convolutions
    Firestone : W01 358 7731Firestone : W01 M58 6165
    Firestone : W01 358 7564Firestone : W01 358 7598
    Firestone : W01 M58 6374FIRESTONE FLEX 115
    FIRESTONE W01 358 0118Firestone : W01 358 7008
    Firestone: W01 358 7009Firestone. W01 358 7103
    Firestone. W01 358 7112
    Double Convolutions
    FIRESTONE W01 095 0111FIRESTONE W01 358 7325
    FIRESTONE W01 358 7327Firestone : W01 358 7325
    Firestone : W01 M58 6353FIRESTONE W01 M58 7894
    Firestone : W01 358 6926Firestone : W01 358 6910
    Firestone : W01 358 6902Firestone : W01 358 6927
    Firestone : W01 358 6943Firestone : W01 358 6946
    Firestone : W01 358 6945Firestone : W01 M58 7679/20C2
    Firestone:W01 358 6948FIRESTONE W01 358 6951
    FIRESTONE W01 358 6952Firestone:W01 M58 6944/20-2
    Firestone:W01 M58 6891/20-2FirestoneW01 358 7180/22
    FIRESTONE W01 358 0226FIRESTONE 22T3 095 .0257
    FIRESTONE fole 210 095.008Fireston:W01 358 7400/22
    Firestone:W01 358 7405Firestone:W01 358 7406
    Firestone:W01 358 7424Firestone:W01 358 7545
    Firestone:W01 358 7550Firestone:W01 358 7555
    Firestone : W01 358 7136FIRESTONE W01 358 7146
    FIRESTONE W01 358 7143Firestone:W01 358 7557
    Firestone:W01 358 7781Firestone:W01 095 0289
    Firestone. W01 095 0508Firestone.W01 358 9529
    Firestone Style 21D-2
    Triple Convolutions
    Firestone:W01 358 8008Firestone:W01 358 8010
    Firestone:W01 358 8027/38Firestone:W01 358 8029
    Firestone:W01 358 8030/38FIRESTONE W01 358 8006
    FIRESTONE FLEX 38R/38DFIRESTONE W01 358 7808
    FIRESTONE W01 358 7798FIRESTONE FLEX 313D
    FIRESTONE FLEX 313DFIRESTONE W01 358 7800
    FIRESTONE W01 358 7818FIRESTONE FLEX 313D

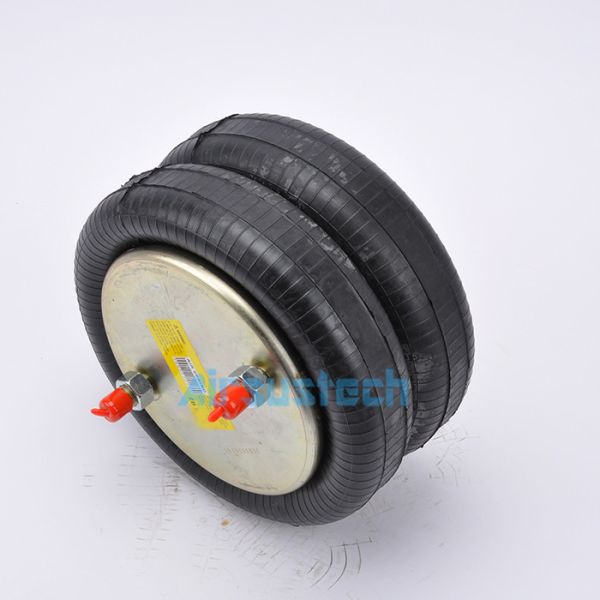

    The related picture of 2B7550 air spring/pneumatic cylinder



    FAQ


    Q1. WHAT IS YOUR WARRANTY TERM?

    A:There is a 12months warranty for our export products has run outfrom the date of the shipment.If warranty ,our customer should pay for the replacement parts.

    Q2. CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS ?

    A:Yes,OEM is welcomed.

    Q3. I CAN NOT FIND OUT THE ITEMS WHAT I WANT FROM YOUR WEBSITE,CAN YOU OFFER THE PRODUCTS I NEED?

    A: YES.One of our service term is sourcing the products that our customers need,So please tell us the details information of the item.
